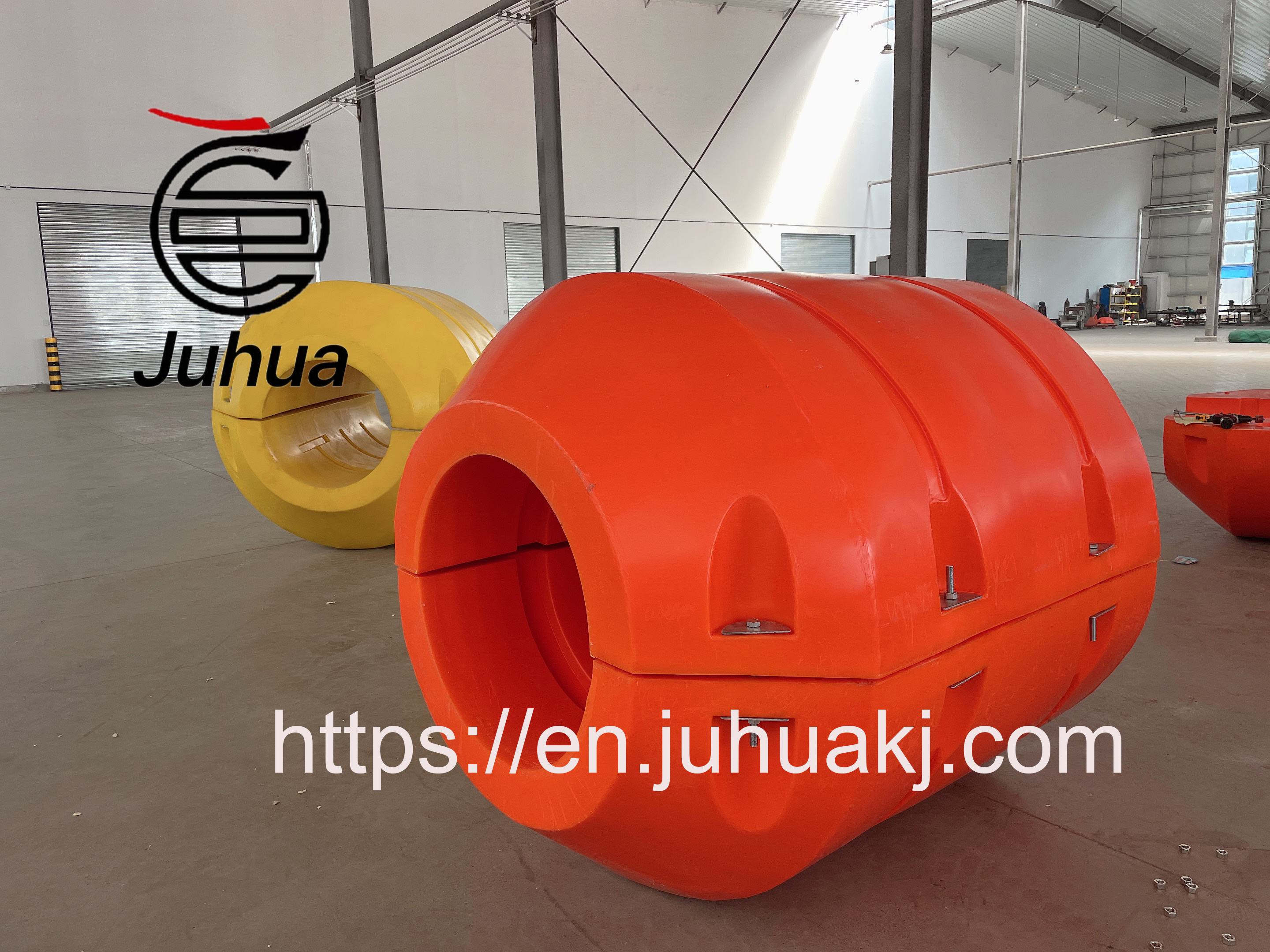

Dredging Pipe Floats

Dredging Pipe Floats are all reinforced materials with anti-corrosion, anti-freeze, anti-oxidation, and anti-purple line, and are not corroded by sea water, chemicals, pharmaceuticals, oil stains and aquatic organisms; strong bearing capacity, stable cylinder and durable. The service life of this product For more than 8 years, in addition to strong natural forces and artificial improper use, no maintenance or repair costs are required.

Category:

Products

Dredging Pipe Floats

Advisory Message
Email contact

WhatsApp：+86-15866657686

E-mail：sales1@juhuakj.com

Product Description

Feature：

1. Light weight and large buoyancy
2. Shock resistance, acid and alkali resistance
3. Easy to install and low cost for maintain
4.. a bright color to act as warning signs to other vessels in the vicinity.
5. Made in China



Key points of structure:
1. shell material: polyethylene
2 internal filler :PU
Galvanized bolts-nuts-washers
UV protection.


Application:for Pipe, Hose or Cable

1. Dredge floats are widely used for supporting suction/discharge hoses.
2.Used in many industries including mining, water treatment, sewerage, aquaculture and dredging.

3.uitable for floating cables, pipes and hose diameters from 25mm to 2600mm



PIPE FLOATER SPECIFICATION

NO

FLOATER ID

FLOATER OD

FLOATER LENGTH

NET BUOYANCY

1

160mm

500mm

800mm

220kg/pair

2

180mm

500mm

800mm

220kg/pair

3

200mm

500mm

800mm

220kg/pair

4

225mm

500mm

800mm

220kg/pair

5

250mm

600mm

700mm

260kg/pair

6

280mm

700mm

900mm

450kg/pair

7

315mm

800mm

1000mm

550kg/pair

8

325mm

1000mm

1000mm

650kg/pair

9

355mm

1000mm

1000mm

650kg/pair

10

380mm

1100mm

1100mm

850kg/pair

11

400mm

1100mm

1100mm

850kg/pair

12

430mm

1200mm

1200mm

1200kg/pair

13

450mm

1200mm

1200mm

1200kg/pair

14

500mm

1300mm

1300mm

1500kg/pair

15

530mm

1300mm

1500mm

1700kg/pair

16

560mm

1300mm

1500mm

1700kg/pair

17

610mm

1300mm

1500mm

1700kg/pair

18

630mm

1300mm

1500mm

1700kg/pair

19

630mm

1400mm

1600mm

2100kg/pair

20

670mm

1500mm

1850mm

2500kg/pair

21

680mm

1500mm

1800mm

2500kg/pair

22

710mm

1500mm

1800mm

2500kg/pair

23

730mm

1600mm

1900mm

2900kg/pair

24

780mm

1700mm

2000mm

2900kg/pair

25

840mm

1850mm

2100mm

3400kg/pair

26

900mm

2000mm

2400mm

4800kg/pair

27

960mm

2500mm

2060mm

5100kg/pair

28

1000mm

2500mm

2060mm

5100kg/pair
